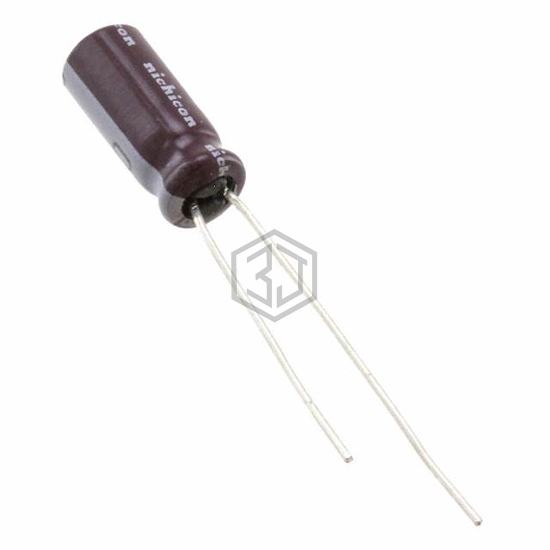

CAP ALUM 10UF 20% 16V RADIAL
UPW1C100MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,271
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 100 kHz |
| Impedance | 600 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C100MDD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW100M1CBK-0511S | SURGE | CAP ALUM 10UF 20% 16V RADIAL | 100% | View |
| UKT1E100MDD | Nichicon | CAP ALUM 10UF 20% 25V RADIAL | 68% | View |
| URZ1H100MDD | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 66% | View |
| EKMG101ETD100MF11D | United Chemi-Con | CAP ALUM 10UF 20% 100V RADIAL | 64% | View |
| ECA-1JHG100B | Panasonic Electronic Components | CAP 10UF 63V ELECT NHG RADIAL | 59% | View |
| RXW100M1HBK-0511S | SURGE | CAP ALUM 10UF 20% 50V RADIAL | 52% | View |
