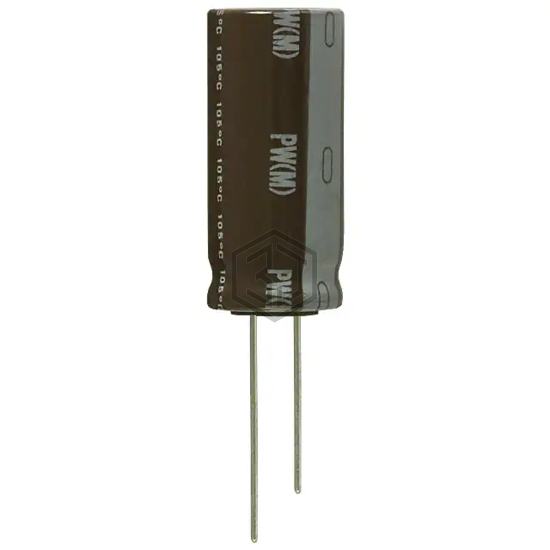

CAP ALUM 8200UF 20% 10V RADIAL
UPW1A822MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,859
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.678 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.15 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A822MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV100ELL822ML40S | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 98% | View |
| B41888C3828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 10V RADIAL | 92% | View |
| THAS852M010AA1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 8500UF 20% 10V FLATPACK | 83% | View |
| B41858C4828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 16V RADIAL | 77% | View |
| ELBK350ELL842AM40S | United Chemi-Con | CAP ALUM 8400UF 35V RADIAL | 67% | View |
| 381LL842M050A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8.4UF 20% 50V SNAP | 60% | View |
