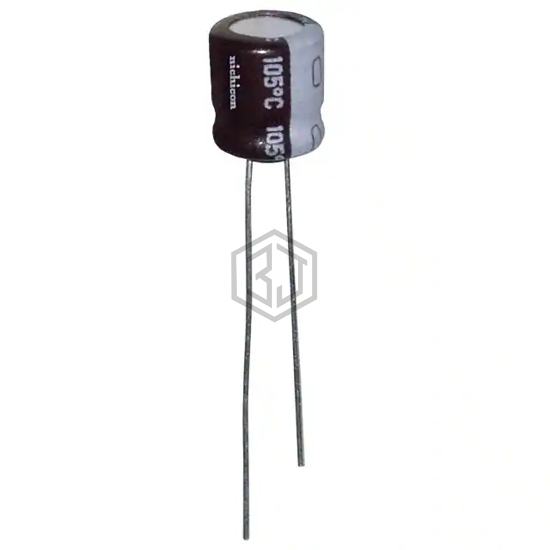

CAP ALUM 82UF 20% 10V RADIAL
UPW1A820MDH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,102
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 450 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A820MDH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A820H | Panasonic Electronic Components | CAP ALUM 82UF 20% 10V RADIAL | 87% | View |
| EEU-FC1E820B | Panasonic Electronic Components | CAP ALUM 82UF 20% 25V RADIAL | 63% | View |
| ELXY350ETD820MF15D | United Chemi-Con | CAP ALUM 82UF 20% 35V RADIAL | 62% | View |
| 860160473010 | Würth Elektronik | CAP ALUM 82UF 20% 25V RADIAL | 61% | View |
| ELXY350EC3820MF15D | United Chemi-Con | CAP ALUM 82UF 20% 35V RADIAL | 57% | View |
| 601D826F250GP2 | Vishay Sprague | CAP ALUM 82UF 250V AXIAL | 56% | View |
