CAP ALUM 680UF 20% 10V RADIAL

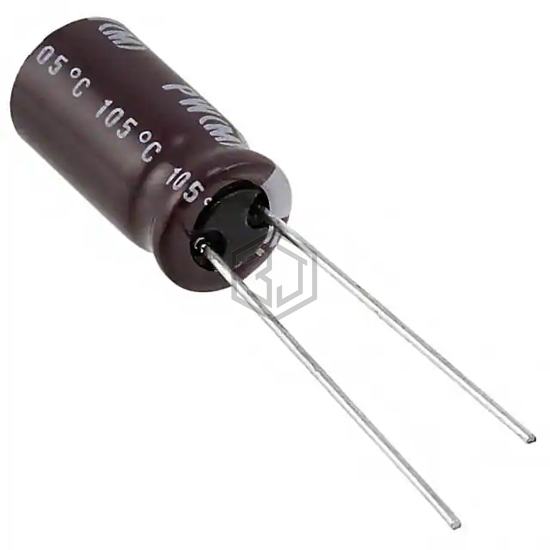

UPW1A681MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 547.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 730 mA @ 100 kHz |
| Impedance | 85 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A681MPD6TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA0J681MPD1TD | Nichicon | CAP ALUM 680UF 20% 6.3V RADIAL | 79% | View |
| 672D687H6R3DM5C | Vishay Sprague | CAP ALUM 680UF 6.3V RADIAL | 70% | View |
| EEU-FC1C681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 70% | View |
| MAL215036681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 59% | View |
| 50PX680MEFC12.5X20 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 54% | View |
| MAL211826681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V AXIAL | 53% | View |
Submit your RFQ for UPW1A681MPD6TD and get a quote within 24 hours.
