CAP ALUM 3300UF 20% 10V RADIAL

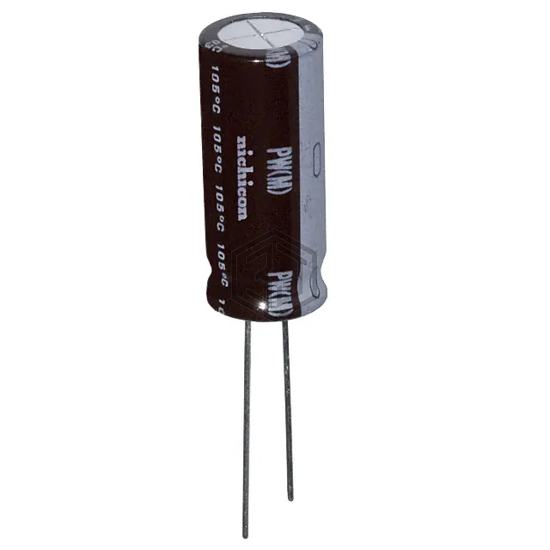

UPW1A332MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,938
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.964 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.31 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A332MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41868A3338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 10V RADIAL | 100% | View |
| RXK332M1ABK-1335S | Surge | CAP ALUM 10V POLAR | 98% | View |
| ELZA100ELL332MK20S | Chemi-Con | CAP ALUM 3.3MF 20% 10V RADIAL TH | 87% | View |
| MALREKB00FE433CG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 83% | View |
| UPA1C332MHD | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 77% | View |
| 35WXA3300MEFCGC18X25 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 65% | View |
