CAP ALUM 100UF 20% 10V RADIAL

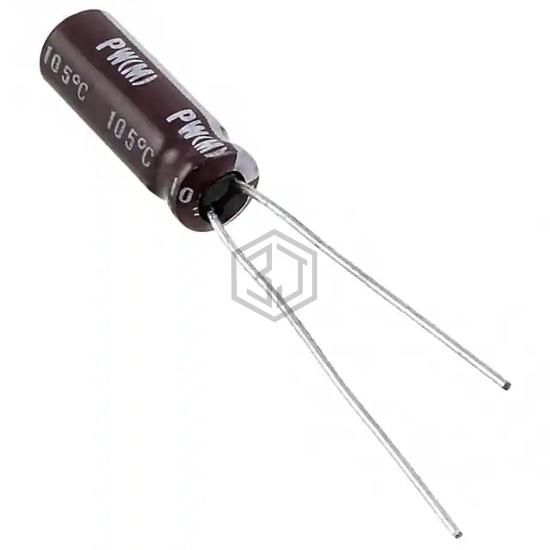

UPW1A101MDD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,891
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 152.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A101MDD6TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212364101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 10V AXIAL | 88% | View |
| URZ1V101MPD1TA | Nichicon | CAP ALUM 100UF 20% 35V RADIAL | 78% | View |
| UPW0J101MDH | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 75% | View |
| URZ1H101MPD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 74% | View |
| KMG6.3VB101M5X11LL | United Chemi-Con | CAP ALUM 100UF 20% 6.3V RADIAL | 70% | View |
| MAL212367101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 40V AXIAL | 64% | View |
Submit your RFQ for UPW1A101MDD6TD and get a quote within 24 hours.
