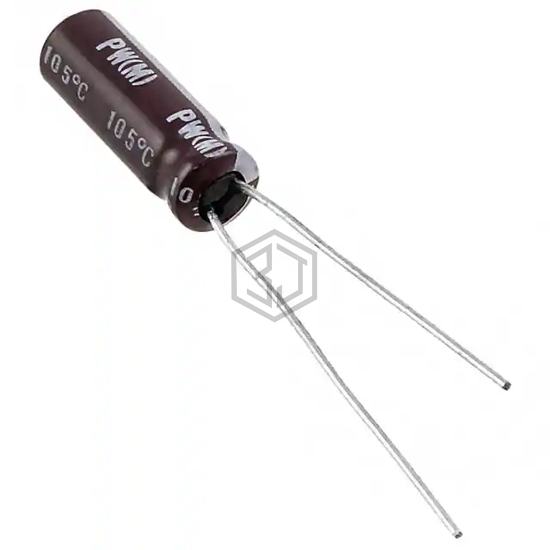

CAP ALUM 100UF 20% 10V RADIAL
UPW1A101MDD6TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,329
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 152.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A101MDD6TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D107H015CD5C | Vishay Sprague | CAP ALUM 100UF 15V RADIAL | 74% | View |
| EKMG500ETC101MHB5D | United Chemi-Con | CAP ALUM 100UF 20% 50V RADIAL | 72% | View |
| ECA-1HHG101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 50V RADIAL | 72% | View |
| EEU-HD1E101B | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V RADIAL | 71% | View |
| RJA101M1EBK-0611S | SURGE | CAP ALUM 100UF 20% 25V RADIAL | 69% | View |
| MAL211926101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 25V AXIAL | 57% | View |
Submit your RFQ for UPW1A101MDD6TA and get a quote within 24 hours.
