CAP ALUM 100UF 20% 10V RADIAL

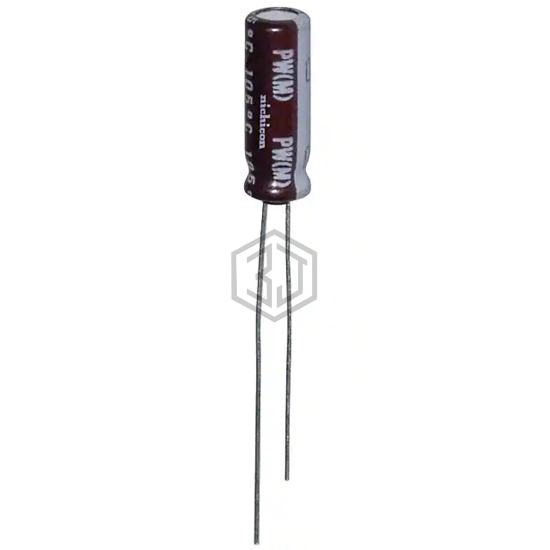

UPW1A101MDD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,861
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 152.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1A101MDD6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1A101MDH6 | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 100% | View |
| EEU-FC1A101SH | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V RADIAL | 82% | View |
| UVZ1A101MDH | Nichicon | CAP ALUM 100UF 20% 10V RADIAL | 81% | View |
| UVZ1E101MED | Nichicon | CAP ALUM 100UF 20% 25V RADIAL | 74% | View |
| EKMG500ELL101MHB5D | United Chemi-Con | CAP ALUM 100UF 20% 50V RADIAL | 72% | View |
| MAL214661101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for UPW1A101MDD6 and get a quote within 24 hours.
