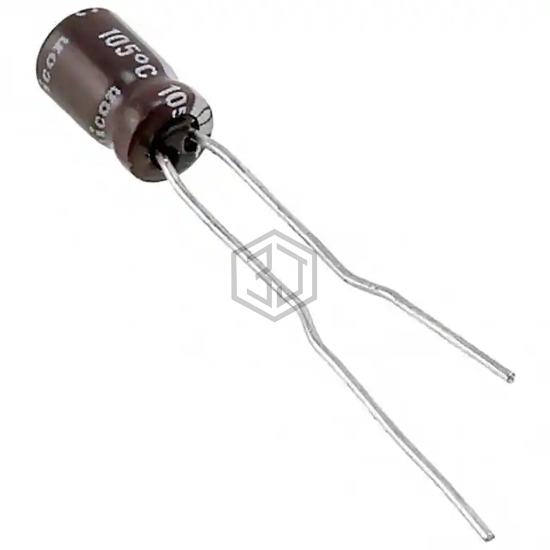

CAP ALUM 68UF 20% 6.3V RADIAL
UPW0J680MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,487
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW0J680MDD1TA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC0J680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 6.3V RADIAL | 100% | View |
| UPW0J680MDD1TP | Nichicon | CAP ALUM 68UF 20% 6.3V RADIAL | 100% | View |
| EEU-FC0J680B | Panasonic Electronic Components | CAP ALUM 68UF 20% 6.3V RADIAL | 100% | View |
| MAL212383689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 6.3V AXIAL | 98% | View |
| EEU-FC1C680H | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V RADIAL | 61% | View |
| USF1C680MDD1TA | Nichicon | CAP ALUM 68UF 20% 16V RADIAL | 61% | View |
