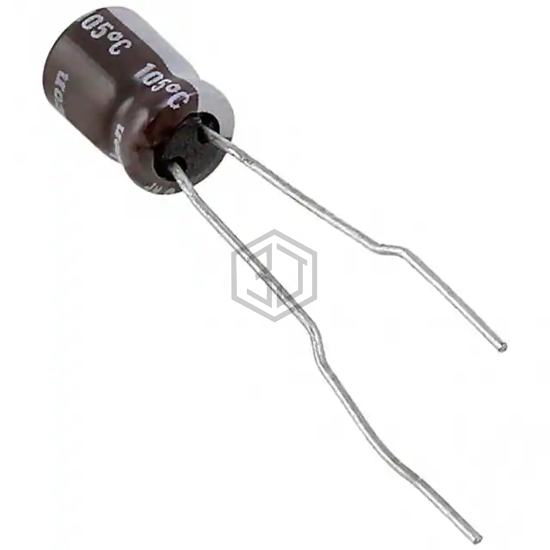

CAP ALUM 33UF 20% 6.3V RADIAL
UPW0J330MDD6TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,964
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 950 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW0J330MDD6TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMT0J330MDD1TP | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 94% | View |
| UPS0J330MDD | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 85% | View |
| 672D336H100DM3C | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 56% | View |
| SEK330M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 63V RADIAL | 56% | View |
| 630D336M200EH6AHSD | Vishay Sprague | CAP ALUM 33UF 20% 200V AXIAL | 56% | View |
| 672D336H100DM5R | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 56% | View |
