CAP ALUM 27UF 20% 6.3V RADIAL

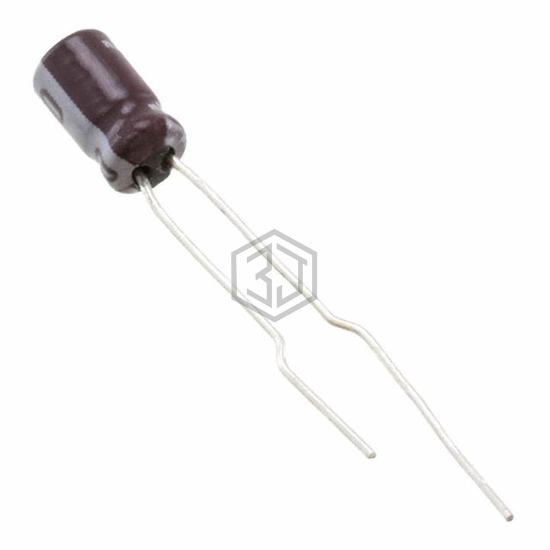

UPW0J270MDD1TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,151
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 65 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW0J270MDD1TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW0J270MDD | Nichicon | CAP ALUM 27UF 20% 6.3V RADIAL | 100% | View |
| UPW0J270MDD1TP | Nichicon | CAP ALUM 27UF 20% 6.3V RADIAL | 100% | View |
| 860160272002 | Würth Elektronik | CAP ALUM 27UF 20% 10V RADIAL | 69% | View |
| 672D276F200EN4D | Vishay Sprague | CAP ALUM 27UF 200V RADIAL | 56% | View |
| B41858C9276M000 | EPCOS - TDK Electronics | CAP ALUM 27UF 20% 100V RADIAL | 56% | View |
| UPJ1H270MDD | Nichicon | CAP ALUM 27UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UPW0J270MDD1TE and get a quote within 24 hours.
