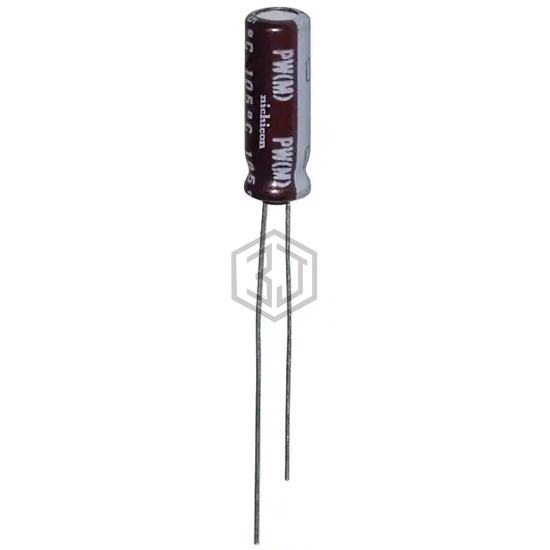

CAP ALUM 150UF 20% 6.3V RADIAL
UPW0J151MDH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,438
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 152.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW0J151MDH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D157H6R3CD5C | Vishay Sprague | CAP ALUM 150UF 6.3V RADIAL | 100% | View |
| UPJ0J151MED | Nichicon | CAP ALUM 150UF 20% 6.3V RADIAL | 93% | View |
| MAL212383151 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 6.3V AXIAL | 88% | View |
| UPM1A151MED1TD | Nichicon | CAP ALUM 150UF 20% 10V RADIAL | 77% | View |
| ELXY350ETD151MH15D | United Chemi-Con | CAP ALUM 150UF 20% 35V RADIAL | 56% | View |
| 630D157M030DF2A | Vishay Sprague | CAP ALUM 150UF 20% 30V AXIAL | 56% | View |
Submit your RFQ for UPW0J151MDH6 and get a quote within 24 hours.
