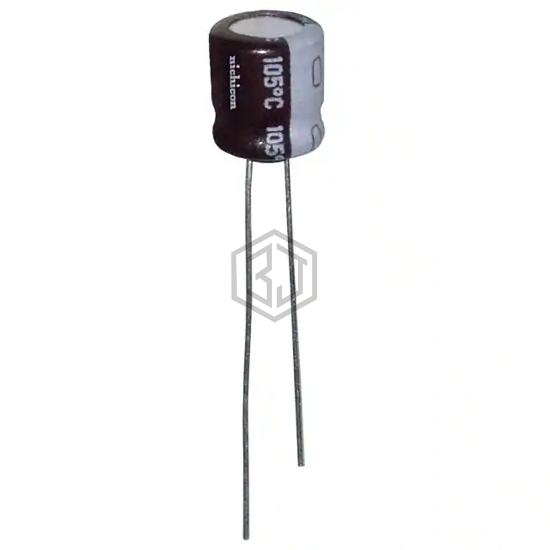

CAP ALUM 120UF 20% 6.3V RADIAL
UPW0J121MDH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,299
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 450 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW0J121MDH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-FC0J121H | Panasonic Electronic Components | CAP ALUM 120UF 20% 6.3V RADIAL | 100% | View |
| 127KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 120UF 20% 16V RADIAL | 62% | View |
| ELXY350EC3121MH12D | United Chemi-Con | CAP ALUM 120UF 20% 35V RADIAL | 61% | View |
| MLSH121M250JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 250V RADIAL | 56% | View |
| 672D127H100ET5J | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 56% | View |
| 610D127F030DL2 | Vishay Sprague | CAP ALUM 120UF 30V AXIAL | 56% | View |
Submit your RFQ for UPW0J121MDH and get a quote within 24 hours.
