CAP ALUM 82UF 20% 35V RADIAL

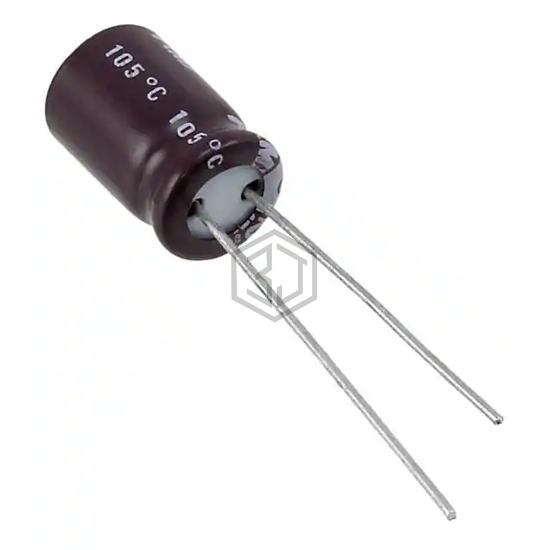

UPV1V820MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,072
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 415 mA @ 100 kHz |
| Impedance | 320 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1V820MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1V820MGD1TD | Nichicon | CAP ALUM 82UF 20% 35V RADIAL | 100% | View |
| EEU-FC1V820 | Panasonic Electronic Components | CAP ALUM 82UF 20% 35V RADIAL | 95% | View |
| LXY35VB82RM6X15LL | United Chemi-Con | CAP ALUM 82UF 20% 35V RADIAL | 94% | View |
| UPM1V820MED | Nichicon | CAP ALUM 82UF 20% 35V RADIAL | 92% | View |
| ELXV630ELL820MH20D | United Chemi-Con | CAP ALUM 82UF 20% 63V RADIAL | 68% | View |
| EY1J820MP510C5ER | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 65% | View |
