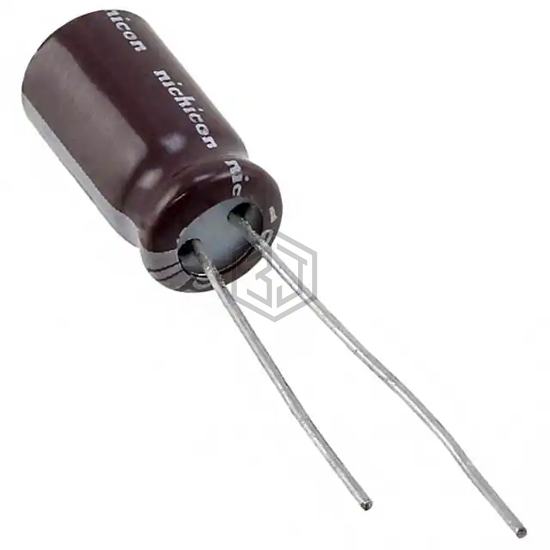

CAP ALUM 56UF 20% 35V RADIAL
UPV1V560MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,459
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 295 mA @ 100 kHz |
| Impedance | 480 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1V560MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EG1V560MNN6311U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 86% | View |
| EEU-FC1E560H | Panasonic Electronic Components | CAP ALUM 56UF 20% 25V RADIAL | 82% | View |
| ELXY500ETC560MF15D | United Chemi-Con | CAP ALUM 56UF 20% 50V RADIAL | 81% | View |
| EEU-FC1H560H | Panasonic Electronic Components | CAP ALUM 56UF 20% 50V RADIAL | 80% | View |
| B41043A7566M | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 35V RADIAL | 78% | View |
| 600D566F150DX5 | Vishay Sprague | CAP ALUM 56UF 150V AXIAL | 56% | View |
Submit your RFQ for UPV1V560MGD1TA and get a quote within 24 hours.
