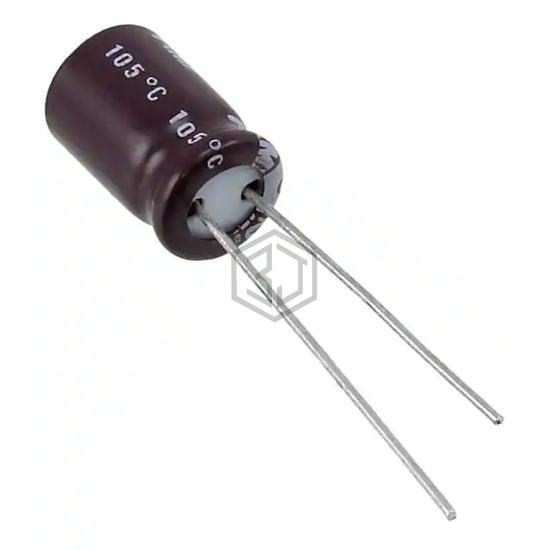

CAP ALUM 68UF 20% 50V RADIAL
UPV1H680MGD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,394
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 280 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1H680MGD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ500ELL680MF11D | United Chemi-Con | CAP ALUM 68UF 20% 50V RADIAL | 100% | View |
| MAL211651689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 50V RADIAL | 85% | View |
| EY2A680MCH0815S | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 57% | View |
| 672D686F100EK3J | Vishay Sprague | CAP ALUM 68UF 100V RADIAL | 56% | View |
| 601D686F150FP1 | Vishay Sprague | CAP ALUM 68UF 150V AXIAL | 56% | View |
| 601D686F300GL7 | Vishay Sprague | CAP ALUM 68UF 300V AXIAL | 56% | View |
Submit your RFQ for UPV1H680MGD and get a quote within 24 hours.
