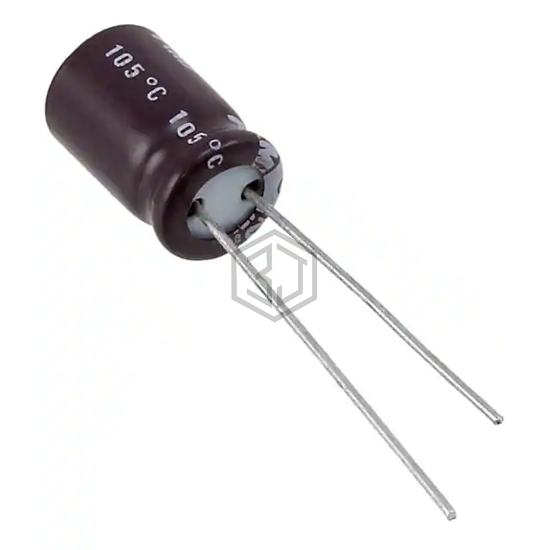

CAP ALUM 56UF 20% 50V RADIAL
UPV1H560MGD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,531
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 350 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1H560MGD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1H560MGD1TA | Nichicon | CAP ALUM 56UF 20% 50V RADIAL | 100% | View |
| 566KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 56UF 20% 50V RADIAL | 92% | View |
| EEU-FC1J560B | Panasonic Electronic Components | CAP ALUM 56UF 20% 63V RADIAL | 88% | View |
| ELXY350ETD560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 83% | View |
| ELXV350ELL560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 81% | View |
| 672D566H020CC5C | Vishay Sprague | CAP ALUM 56UF 20V RADIAL | 56% | View |
