CAP ALUM 68UF 20% 25V RADIAL

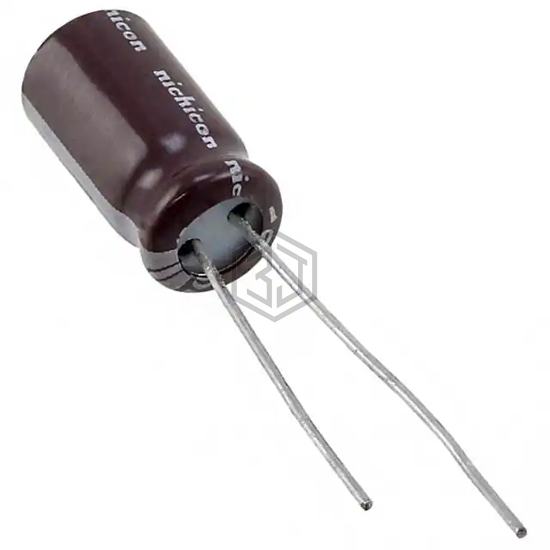

UPV1E680MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,578
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 260 mA @ 100 kHz |
| Impedance | 610 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1E680MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1E680MED1TD | Nichicon | CAP ALUM 68UF 20% 25V RADIAL | 92% | View |
| USF1E680MDD1TD | Nichicon | CAP ALUM 68UF 20% 25V RADIAL | 90% | View |
| USF1C680MDD1TA | Nichicon | CAP ALUM 68UF 20% 16V RADIAL | 75% | View |
| UPV1C680MGD | Nichicon | CAP ALUM 68UF 20% 16V RADIAL | 71% | View |
| EEU-FC1C680H | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V RADIAL | 70% | View |
| 686KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 100V RADIAL | 57% | View |
Submit your RFQ for UPV1E680MGD1TA and get a quote within 24 hours.
