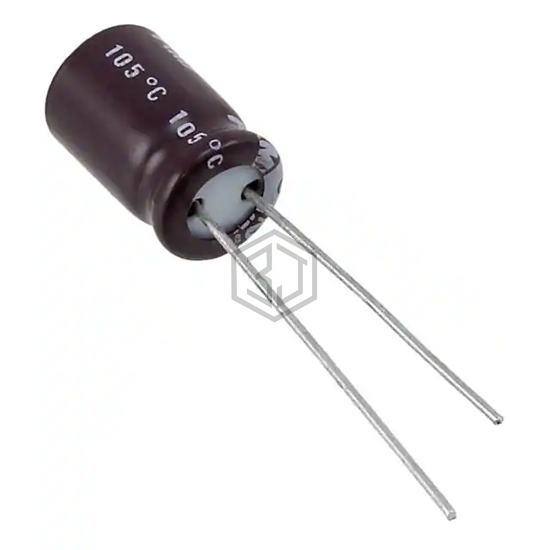

CAP ALUM 120UF 20% 25V RADIAL
UPV1E121MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,495
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 405 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1E121MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D127M025CC4DE3 | Vishay Sprague | CAP ALUM 120UF 20% 25V RADIAL | 100% | View |
| EEU-FC1C121H | Panasonic Electronic Components | CAP ALUM 120UF 20% 16V RADIAL | 75% | View |
| ELXY350ELL121MH12D | United Chemi-Con | CAP ALUM 120UF 20% 35V RADIAL | 75% | View |
| EEU-FC1C121 | Panasonic Electronic Components | CAP ALUM 120UF 20% 16V RADIAL | 75% | View |
| B41890A5127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 25V RADIAL | 72% | View |
| 860080272004 | Würth Elektronik | CAP ALUM 120UF 20% 10V RADIAL | 62% | View |
Submit your RFQ for UPV1E121MGD1TA and get a quote within 24 hours.
