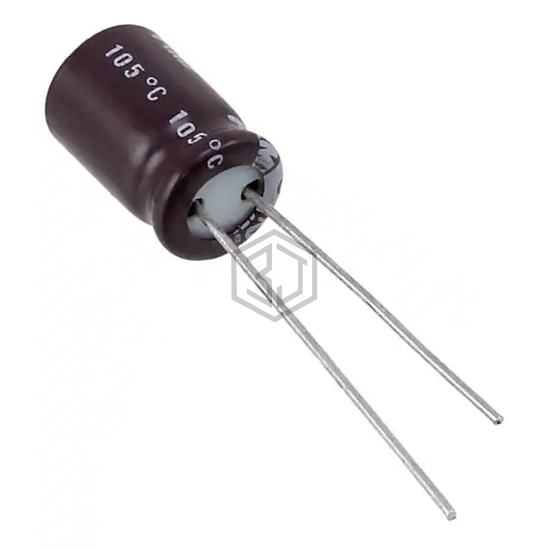

CAP ALUM 100UF 20% 25V RADIAL
UPV1E101MGD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,444
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 410 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1E101MGD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG25VB101M6X11LL | United Chemi-Con | CAP ALUM 100UF 20% 25V RADIAL | 100% | View |
| 678D107M025CC4DE3 | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 89% | View |
| 678D107M025CC3D | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 89% | View |
| USF1C101MDD1TA | Nichicon | CAP ALUM 100UF 20% 16V RADIAL | 74% | View |
| USF0J101MDD1TD | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 51% | View |
| MAL213651101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 50% | View |
