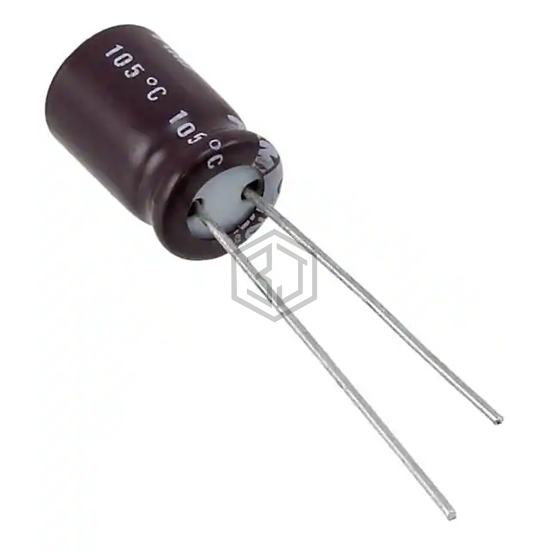

CAP ALUM 220UF 20% 16V RADIAL
UPV1C221MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,933
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 460 mA @ 100 kHz |
| Impedance | 270 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1C221MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1A221MPD1TD | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 75% | View |
| EKMQ630ELL221MJ16S | United Chemi-Con | CAP ALUM 220UF 20% 63V RADIAL | 69% | View |
| ECA-1JHG221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 63V RADIAL | 69% | View |
| EKMG350ETC221MHB5D | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 67% | View |
| 517D227M050CD8PE3 | Vishay Sprague | CAP ALUM 220UF 20% 50V RADIAL | 63% | View |
| RXK221M1EBK-1012S | SURGE | CAP ALUM 220UF 20% 25V RADIAL | 62% | View |
Submit your RFQ for UPV1C221MGD1TA and get a quote within 24 hours.
