CAP ALUM 39UF 20% 420V RADIAL

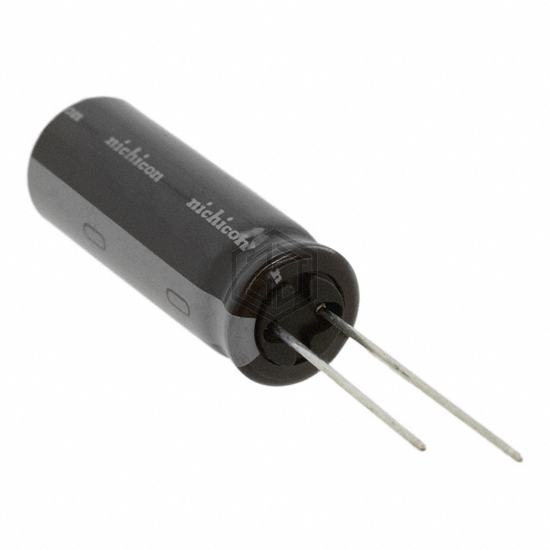

UPTW6390MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 2,754
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 496 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EPAG421ELL390MK30S | United Chemi-Con | CAP ALUM 39UF 20% 420V RADIAL | 94% | View |
| 400QXW39MEFR10X35 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 92% | View |
| 450BXW39MEFR12.5X30 | Rubycon | CAP ALUM 39UF 20% 450V RADIAL | 87% | View |
| EKXJ401ELL390MJ40S | United Chemi-Con | CAP ALUM 39UF 20% 400V RADIAL | 83% | View |
| UCY2E390MPD1TD | Nichicon | CAP ALUM 39UF 20% 250V RADIAL | 74% | View |
| 200TXW39MEFR8X25 | Rubycon | CAP ALUM 39UF 20% 200V RADIAL TH | 74% | View |
Submit your RFQ for UPTW6390MHD and get a quote within 24 hours.
