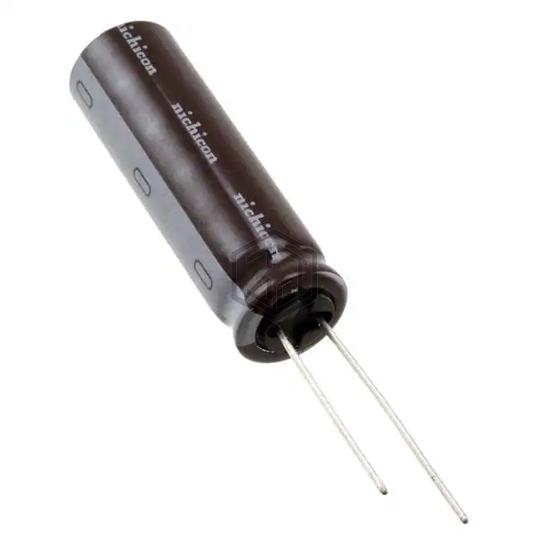

CAP ALUM 39UF 20% 450V RADIAL
UPT2W390MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 6,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450QXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 450V RADIAL | 94% | View |
| 400QXW39MEFR8X50 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 92% | View |
| 420BXW39MEFR16X20 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 90% | View |
| UAS2G390MHD6 | Nichicon | CAP ALUM 39UF 20% 400V RADIAL | 88% | View |
| UCY2G390MHD | Nichicon | CAP ALUM 39UF 20% 400V RADIAL | 83% | View |
| EEU-FC2A390 | Panasonic Electronic Components | CAP ALUM 39UF 20% 100V RADIAL | 65% | View |
Submit your RFQ for UPT2W390MHD and get a quote within 24 hours.
