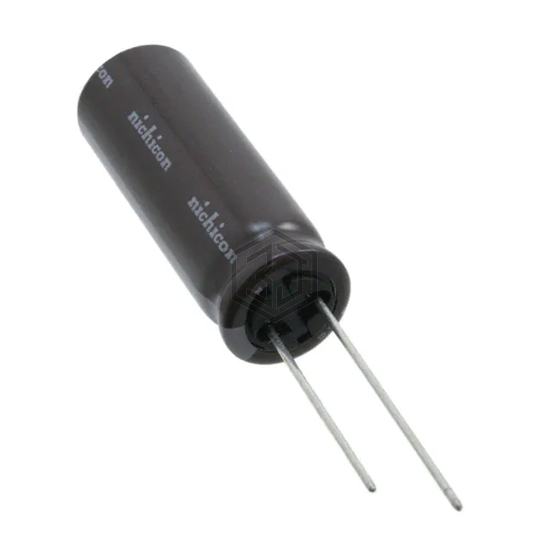

CAP ALUM 33UF 20% 450V RADIAL
UPT2W330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 7,845
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 448 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RLD330M2GBK-1040S | Surge | CAP ALUM 400V POLAR | 81% | View |
| B43858A9336M000 | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 400V RADIAL | 80% | View |
| EKXJ351ETE330MK20S | United Chemi-Con | CAP ALUM 33UF 20% 350V RADIAL | 74% | View |
| UBT2E330MHD | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 61% | View |
| 336RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 50V RADIAL | 56% | View |
| EKXE161ELL330MJ16S | United Chemi-Con | CAP ALUM 33UF 20% 160V RADIAL TH | 53% | View |
