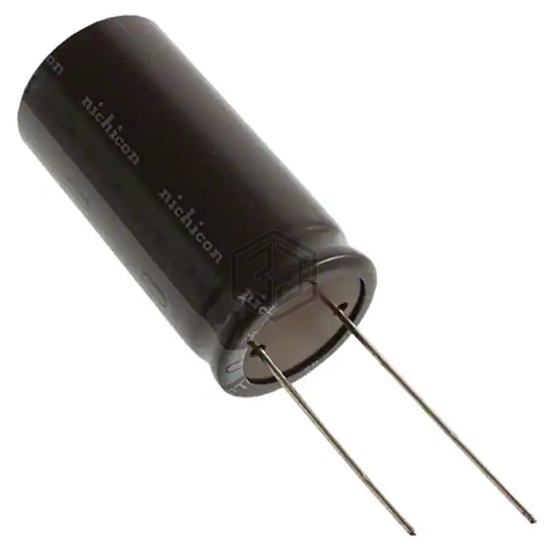

CAP ALUM 180UF 20% 450V RADIAL
UPT2W181MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 3,022
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.76 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMS501VSN181MA30S | United Chemi-Con | CAP ALUM 180UF 20% 500V SNAP | 94% | View |
| 500MXG180MEFCSN25X50 | Rubycon | CAP ALUM 180UF 20% 500V SNAP | 90% | View |
| B43508A9187M80 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 88% | View |
| EKXJ351ELL181MM40S | United Chemi-Con | CAP ALUM 180UF 20% 350V RADIAL | 84% | View |
| B43254B5187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 76% | View |
| B43254C5187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 75% | View |
Submit your RFQ for UPT2W181MRD and get a quote within 24 hours.
