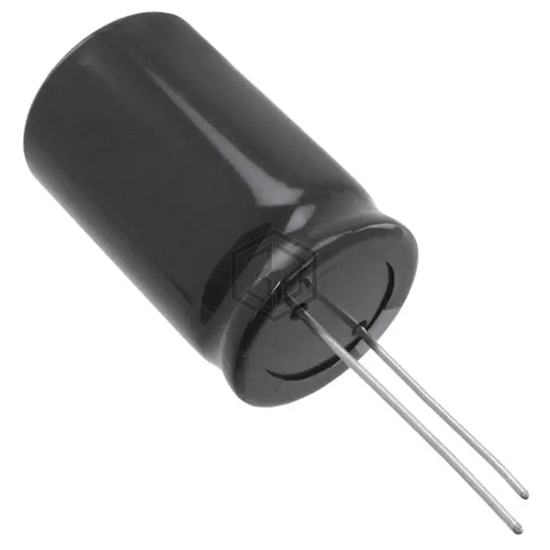

CAP ALUM 150UF 20% 450V RADIAL
UPT2W151MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 5,009
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 920 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.472 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A157M60 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 420V SNAP | 95% | View |
| 450VXS150MEFCSN30X25 | Rubycon | CAP ALUM 150UF 20% 450V SNAP | 93% | View |
| EKMM401VNN151MQ30S | United Chemi-Con | CAP ALUM 150UF 20% 400V SNAP | 92% | View |
| 400VXG150MEFCSN22X35 | Rubycon | CAP ALUM 150UF 20% 400V SNAP | 91% | View |
| MAL225966151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 91% | View |
| ELXM3B1VSN151MQ25S | United Chemi-Con | CAP ALUM 150UF 20% 315V SNAP | 83% | View |
