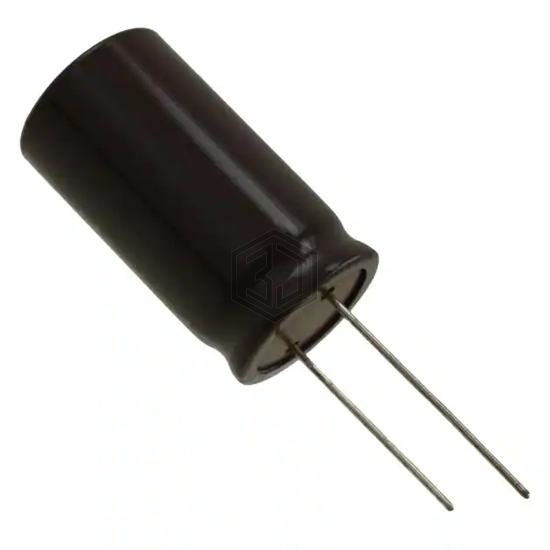

CAP ALUM 120UF 20% 450V RADIAL
UPT2W121MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,277
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.232 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420MXH120MEFC22X25 | Rubycon | CAP ALUM 120UF 20% 420V SNAP | 96% | View |
| B43504E127M87 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 420V SNAP | 95% | View |
| 450VXH120MEFCSN25X25 | Rubycon | CAP ALUM 120UF 20% 450V SNAP | 93% | View |
| LGJ2E121MELA15 | Nichicon | CAP ALUM 120UF 20% 250V SNAP | 69% | View |
| 500MXG120MEFCSN22X50 | Rubycon | CAP ALUM 120UF 20% 500V SNAP | 59% | View |
| 672D127F100EN4J | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 56% | View |
Submit your RFQ for UPT2W121MRD and get a quote within 24 hours.
