CAP ALUM 680UF 20% 220V RADIAL

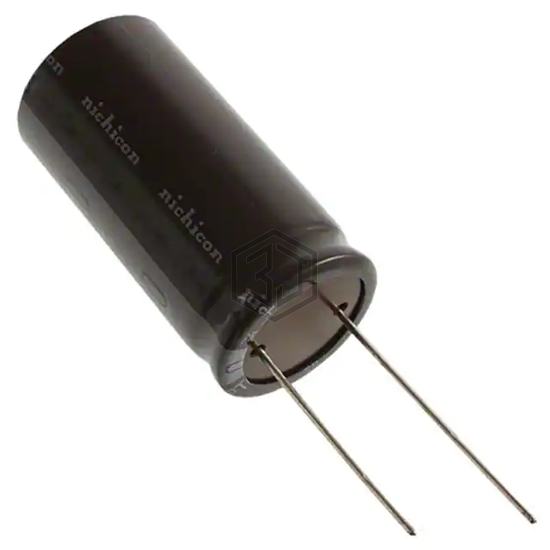

UPT2P681MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 220V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can.
In Stock: 110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.56 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UPT2P681MRD and get a quote within 24 hours.
