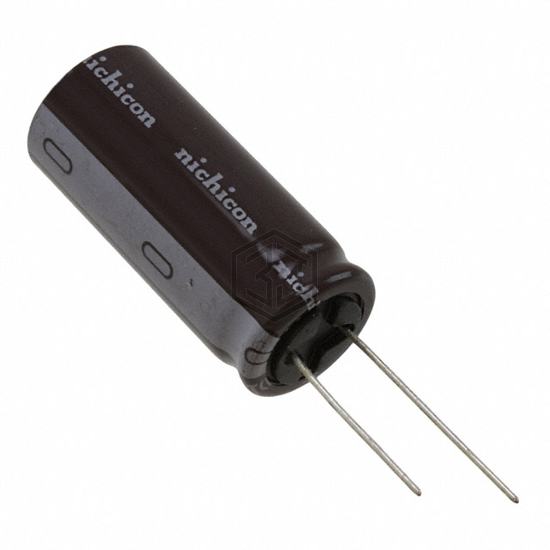

CAP ALUM 330UF 20% 220V RADIAL
UPT2P331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 220V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.01 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.616 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 220MXC330MEFC22X30 | Rubycon | CAP ALUM 330UF 20% 220V SNAP | 89% | View |
| ETXH401VSN331MA35S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 74% | View |
| 678D337M050EK5D | Vishay Sprague | CAP ALUM 330UF 20% 50V RADIAL | 70% | View |
| MAL205956331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 400V SNAP | 68% | View |
| B43508C5337M062 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 450V SNAP | 59% | View |
| 678D337M063EK4D | Vishay Sprague | CAP ALUM 330UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for UPT2P331MHD and get a quote within 24 hours.
