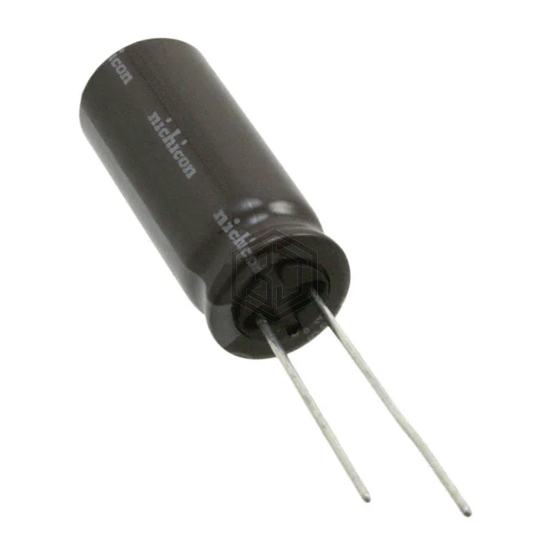

CAP ALUM 100UF 20% 220V RADIAL
UPT2P101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 220V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can.
In Stock: 476
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 430 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2C101MHL | Nichicon | CAP ALUM 100UF 20% 160V RADIAL | 75% | View |
| 100ZLH100MEFCT810X20 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 65% | View |
| 400HXG100MEFCSN22X30 | Rubycon | CAP ALUM 100UF 20% 400V SNAP | 62% | View |
| EKZE101ETD101MK16S | United Chemi-Con | CAP ALUM 100UF 20% 100V RADIAL | 60% | View |
| MAL215956101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 400V SNAP | 60% | View |
| LGX2W101MELZ30 | Nichicon | CAP ALUM 100UF 20% 450V SNAP | 56% | View |
Submit your RFQ for UPT2P101MHD and get a quote within 24 hours.
