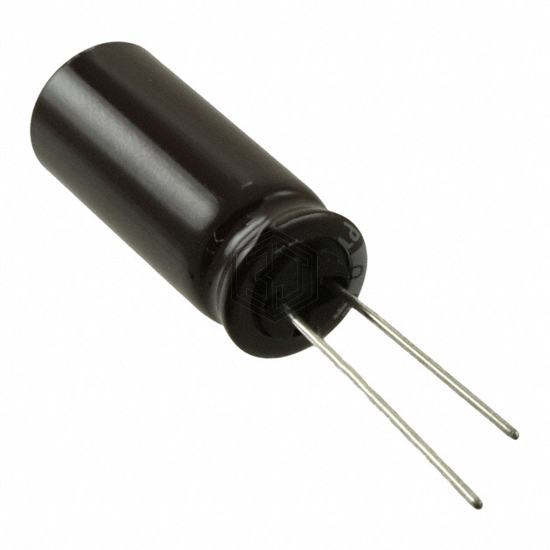

CAP ALUM 33UF 20% 400V RADIAL
UPT2G330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,831
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 290 mA @ 120 Hz |
| Ripple Current @ High Frequency | 464 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 350TXW33MEFR10X25 | Rubycon | CAP ALUM 33UF 20% 350V RADIAL | 94% | View |
| 450HXW33MEFR12.5X20 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 88% | View |
| UVZ2G330MHH | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 86% | View |
| B43858B5336M002 | EPCOS - TDK Electronics | CAP ALUM 450V POLAR | 78% | View |
| 860040773001 | Würth Elektronik | CAP ALUM 33UF 20% 63V RADIAL | 53% | View |
| 860160673013 | Würth Elektronik | CAP ALUM 33UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for UPT2G330MHD and get a quote within 24 hours.
