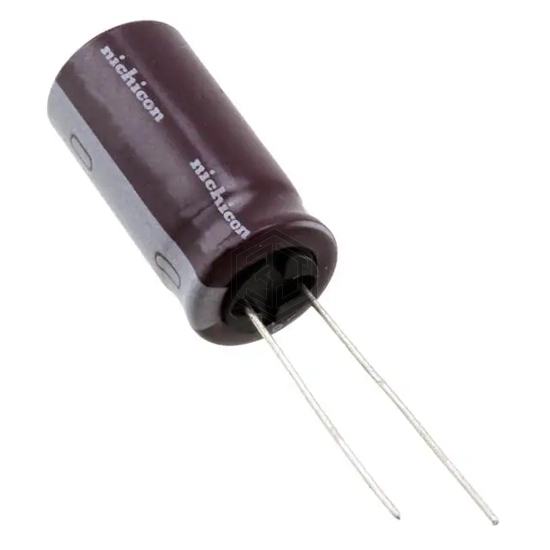

CAP ALUM 56UF 20% 250V RADIAL
UPT2E560MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 496 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A560 | Panasonic Electronic Components | CAP ALUM 56UF 20% 100V RADIAL | 77% | View |
| UPM2A560MHD6TO | Nichicon | CAP ALUM 56UF 20% 100V RADIAL | 68% | View |
| B41896C6566M006 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 68% | View |
| B43252B5566M | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 450V SNAP | 67% | View |
| MAL209457569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 450V SNAP | 57% | View |
| 50YXS56MEFC6.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 56% | View |
