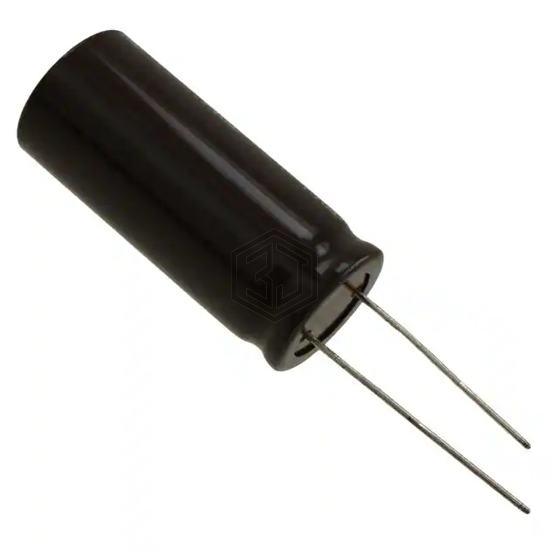

CAP ALUM 470UF 20% 250V RADIAL
UPT2E471MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 5,119
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.32 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215933471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 250V SNAP | 97% | View |
| EKMS201VSN471MP30S | United Chemi-Con | CAP ALUM 470UF 20% 200V SNAP | 92% | View |
| B43504G2477M80 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 200V SNAP | 90% | View |
| 160VXR470MEFC25X30 | Rubycon | CAP ALUM 470UF 20% 160V SNAP | 83% | View |
| 381LQ471M420K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 420V SNAP | 80% | View |
| EKXJ161ELL471ML45S | United Chemi-Con | CAP ALUM 470UF 20% 160V RADIAL | 70% | View |
