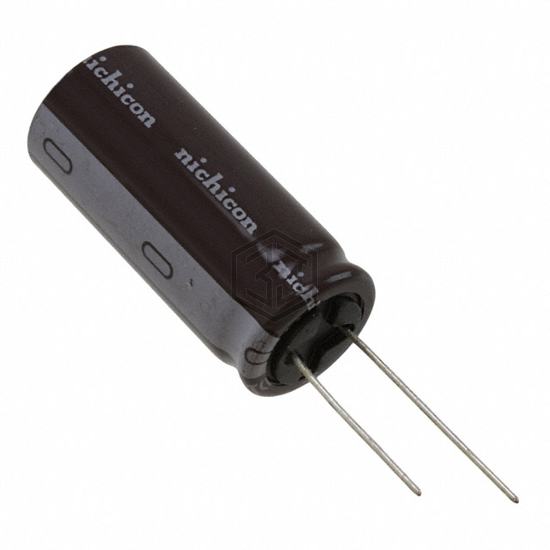

CAP ALUM 270UF 20% 250V RADIAL
UPT2E271MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,079
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250TXW270MEFR18X33 | Rubycon | CAP ALUM 270UF 20% 250V RAD TH | 100% | View |
| B43252F2277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 250V SNAP | 96% | View |
| LGN2G271MELB30 | Nichicon | CAP ALUM 270UF 20% 400V SNAP | 76% | View |
| EEU-FR1V271B | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 74% | View |
| B43252A9277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 74% | View |
| ELXM421VSN271MA35S | United Chemi-Con | CAP ALUM 270UF 20% 420V SNAP | 70% | View |
Submit your RFQ for UPT2E271MHD and get a quote within 24 hours.
