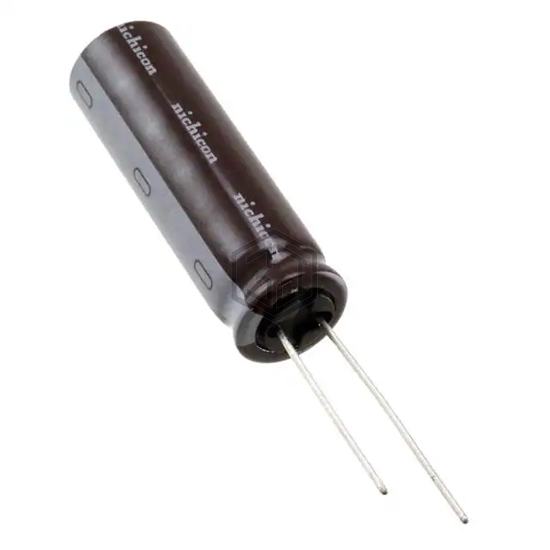

CAP ALUM 120UF 20% 250V RADIAL
UPT2E121MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 1,508
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 530 mA @ 120 Hz |
| Ripple Current @ High Frequency | 848 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGG2W121MELA25 | Nichicon | CAP ALUM 120UF 20% 450V SNAP | 72% | View |
| B41858C9127M000 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 100V RADIAL | 71% | View |
| EKXJ201ELL121MK30S | United Chemi-Con | CAP ALUM 120UF 20% 200V RADIAL | 70% | View |
| B43252A1227M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 160V SNAP | 70% | View |
| UPHW6121MHD6 | Nichicon | CAP ALUM 120UF 20% 420V RADIAL | 66% | View |
| 100YXG120MEFC10X28 | Rubycon | CAP ALUM 120UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for UPT2E121MHD and get a quote within 24 hours.
