CAP ALUM 100UF 20% 250V RADIAL

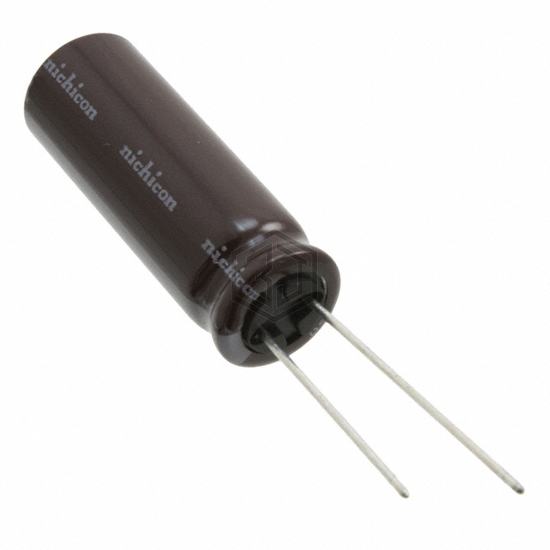

UPT2E101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 460 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2D101MHD1TN | Nichicon | CAP ALUM 100UF 20% 200V RADIAL | 80% | View |
| MAL214261016E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 400V RADIAL | 76% | View |
| B43508A5107M87 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 64% | View |
| MAL211890514E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V AXIAL | 56% | View |
| B41890A7107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 35V RADIAL | 56% | View |
| MAL225917101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 450V SNAP | 55% | View |
