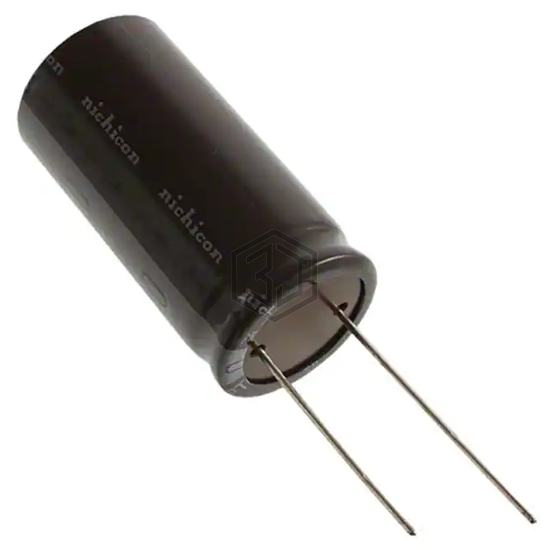

CAP ALUM 820UF 20% 200V RADIAL
UPT2D821MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,037
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.56 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215953821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 250V SNAP | 84% | View |
| MAL215812821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 80V SNAP | 68% | View |
| UBY1H821MHL1TO | Nichicon | CAP ALUM 820UF 20% 50V RADIAL | 67% | View |
| 100MXC820MEFC20X35 | Rubycon | CAP ALUM 820UF 20% 100V SNAP | 62% | View |
| MAL213651821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V RADIAL | 60% | View |
| 383LX821M450B052VS | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 450V SNAP | 56% | View |
Submit your RFQ for UPT2D821MRD and get a quote within 24 hours.
