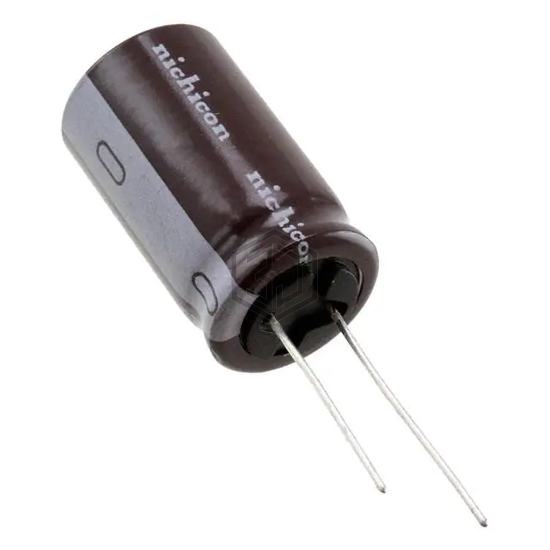

CAP ALUM 220UF 20% 200V RADIAL
UPT2D221MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 5,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 810 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.296 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGJ2D221MELB15 | Nichicon | CAP ALUM 220UF 20% 200V SNAP | 97% | View |
| EKMM401VSN221MA25W | United Chemi-Con | CAP ALUM 220UF 20% 400V SNAP | 67% | View |
| B43504B9227M67 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 61% | View |
| B43504A5227M007 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 59% | View |
| MAL214050221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 55% | View |
| B43544B9227M002 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 55% | View |
Submit your RFQ for UPT2D221MHD6 and get a quote within 24 hours.
