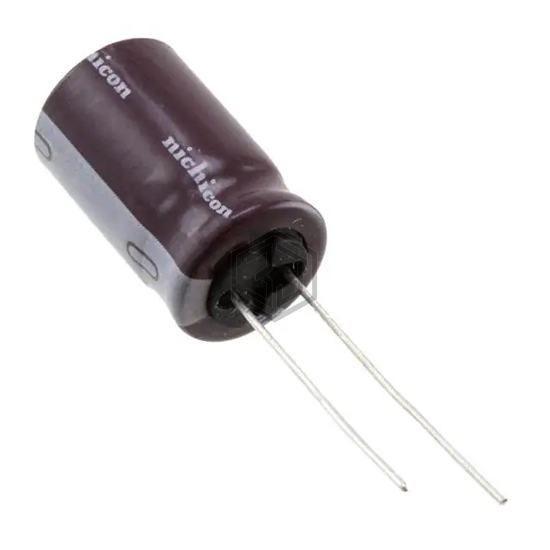

CAP ALUM 4.7UF 20% 450V RADIAL
UPS2W4R7MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 4,266
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 49 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2W4R7MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESH475M450AH2KA | KEMET | CAP ALUM RAD 105C | 100% | View |
| UBT2V4R7MPD1TD | Nichicon | CAP ALUM 4.7UF 20% 350V RADIAL | 86% | View |
| 400LEX4.7MEFC10X12.5 | Rubycon | CAP ALUM 4.7UF 20% 400V RADIAL | 81% | View |
| 50YXM4.7MEFR5X11 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL | 69% | View |
| UBX2V4R7MPL1TD | Nichicon | CAP ALUM 4.7UF 20% 350V RADIAL | 68% | View |
| MAL213838478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 63V AXIAL | 60% | View |
Submit your RFQ for UPS2W4R7MHD and get a quote within 24 hours.
