CAP ALUM 3.3UF 20% 450V RADIAL

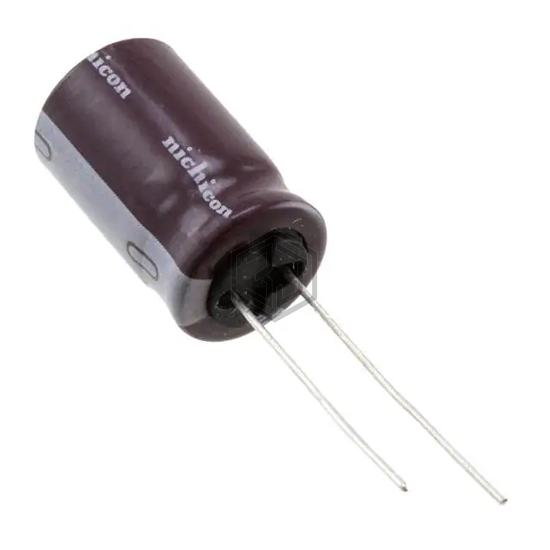

UPS2W3R3MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 354
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 41 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2W3R3MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43888C9335M008 | EPCOS - TDK Electronics | CAP ALUM 400V POLAR | 92% | View |
| 400BXC3.3MEFC10X16 | Rubycon | CAP ALUM 3.3UF 20% 400V RADIAL | 91% | View |
| B43851F9335M000 | EPCOS - TDK Electronics | CAP ALUM 3.3UF 20% 400V RADIAL | 91% | View |
| ECA-2EHG3R3B | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 250V RADIAL | 75% | View |
| 517D335M050JA6AE3 | Vishay Sprague | CAP ALUM 3.3UF 20% 50V RADIAL | 55% | View |
| 335KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3.3UF 20% 100V RADIAL | 51% | View |
