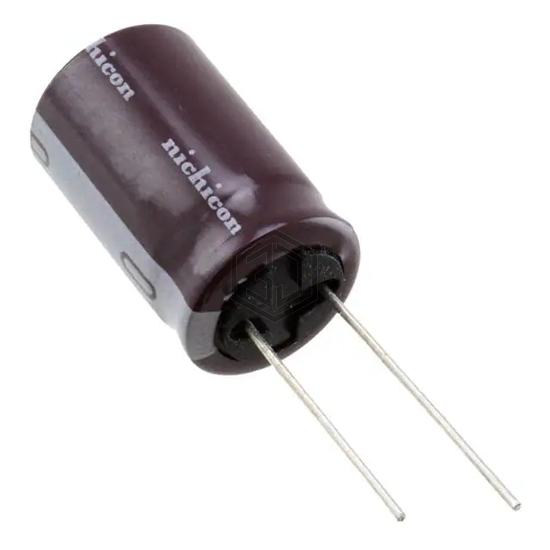

CAP ALUM 10UF 20% 450V RADIAL
UPS2W100MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 5,551
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2W100MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB05FE210P00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 450V RADIAL | 98% | View |
| 200LEX10MEFC8X11.5 | Rubycon | CAP ALUM 10UF 20% 200V RADIAL | 72% | View |
| 35ZL10MEFCCR4X7 | Rubycon | CAP ALUM 10UF 20% 35V RADIAL | 68% | View |
| UKL1V100KDDANATD | Nichicon | CAP ALUM 10UF 20% 35V RADIAL | 63% | View |
| 30D106M050BA2T | Vishay Sprague | CAP ALUM 10UF 20% 50V AXIAL | 54% | View |
| ECA-1HHG100 | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V RADIAL | 53% | View |
Submit your RFQ for UPS2W100MHD1TN and get a quote within 24 hours.
