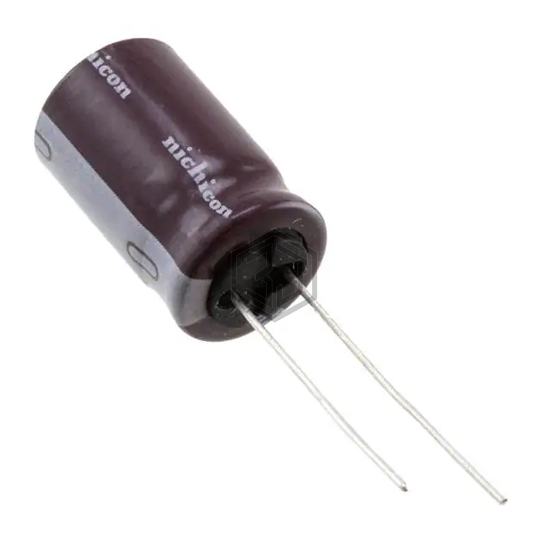

CAP ALUM 10UF 20% 350V RADIAL
UPS2V100MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 296
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 82 mA @ 120 Hz |
| Ripple Current @ High Frequency | 131.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2V100MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215237109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 450V RADIAL | 87% | View |
| 30D106M100CB2A | Vishay Sprague | CAP ALUM 10UF 20% 100V AXIAL | 77% | View |
| MAL214252109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 200V RADIAL | 75% | View |
| UBT1H100MPD8TA | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 69% | View |
| EKZE500ELL100ME07D | United Chemi-Con | CAP ALUM 10UF 20% 50V RADIAL | 66% | View |
| 511D106M100BB4D | Vishay Sprague | CAP ALUM 10UF 20% 100V RADIAL | 65% | View |
Submit your RFQ for UPS2V100MHD1TO and get a quote within 24 hours.
