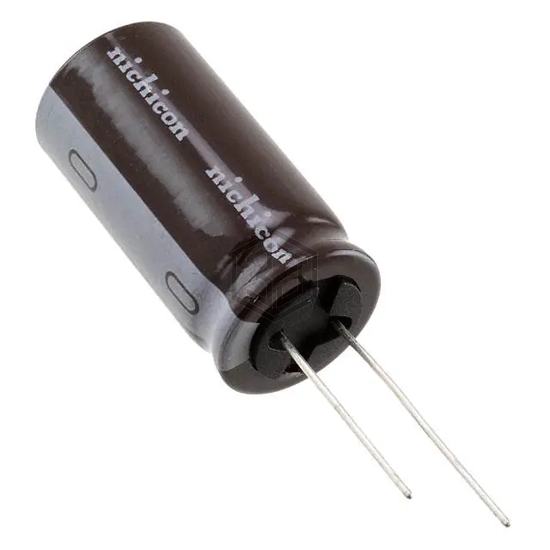

CAP ALUM 47UF 20% 400V RADIAL
UPS2G470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,249
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 272 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2G470MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214869479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 100V RADIAL | 70% | View |
| 35YXM47MEFRT16.3X11 | Rubycon | CAP ALUM 47UF 20% 35V RADIAL | 69% | View |
| EKZM350ELL470ME11D | United Chemi-Con | CAP ALUM 47UF 20% 35V RADIAL | 68% | View |
| MAL214232479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 200V RADIAL | 61% | View |
| 860130373002 | Würth Elektronik | CAP ALUM 47UF 20% 16V RADIAL | 57% | View |
| 16MH747MEFCT55X7 | Rubycon | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
