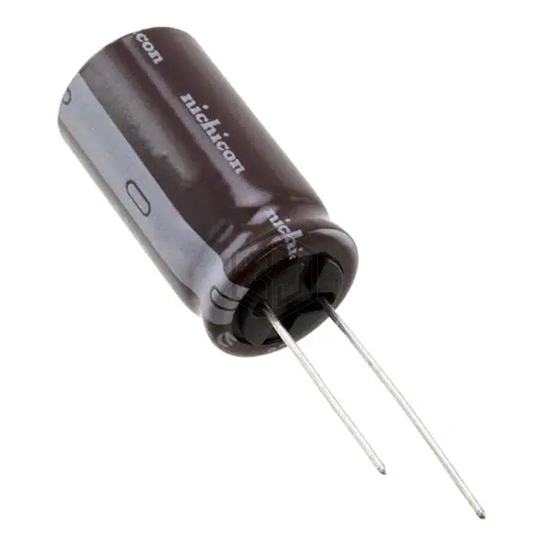

CAP ALUM 33UF 20% 400V RADIAL
UPS2G330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 6,864
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 224 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2G330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY2E330MPD | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 78% | View |
| UAS2G330MHD1TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 77% | View |
| EGXE251ELL330MK25S | United Chemi-Con | CAP ALUM 33UF 20% 250V RADIAL | 73% | View |
| 35YXH33MEFCT15X11 | Rubycon | CAP ALUM 33UF 20% 35V RADIAL | 65% | View |
| VJ2W330MRL1625A6 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 61% | View |
| 517D336M016JA6AE3 | Vishay Sprague | CAP ALUM 33UF 20% 16V RADIAL | 51% | View |
