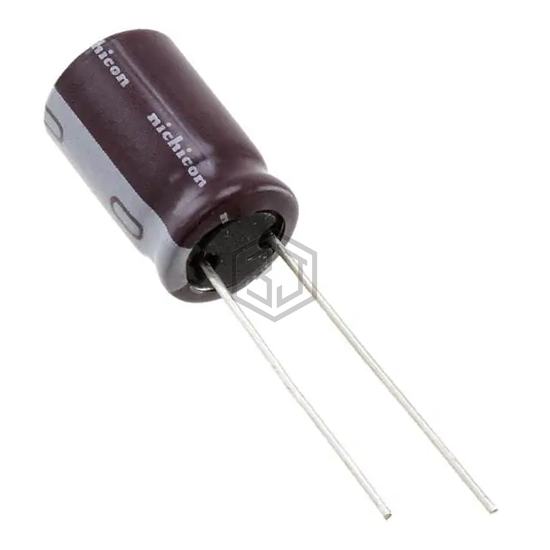

CAP ALUM 2.2UF 20% 400V RADIAL
UPS2G2R2MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,086
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2G2R2MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS2V2R2MPD1TD | Nichicon | CAP ALUM 2.2UF 20% 350V RADIAL | 100% | View |
| UPM2F2R2MPD | Nichicon | CAP ALUM 2.2UF 20% 315V RADIAL | 85% | View |
| ULD2G2R2MPD | Nichicon | CAP ALUM 2.2UF 20% 400V RADIAL | 76% | View |
| UVZ2C2R2MED | Nichicon | CAP ALUM 2.2UF 20% 160V RADIAL | 75% | View |
| UPM1H2R2MDD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 74% | View |
| 100YXJ2.2MT15X11 | Rubycon | CAP ALUM 2.2UF 20% 100V RADIAL | 52% | View |
Submit your RFQ for UPS2G2R2MPD and get a quote within 24 hours.
