CAP ALUM 22UF 20% 400V RADIAL

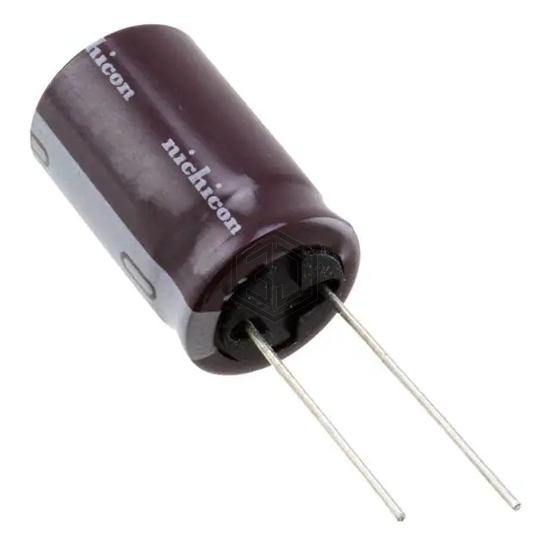

UPS2G220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,309
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 176 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2G220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2E220MHD1AA | Nichicon | CAP ALUM 250V POLAR | 78% | View |
| UKL1V220MEDDANATD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 74% | View |
| EKMG161ELL220MJ20S | United Chemi-Con | CAP ALUM 22UF 20% 160V RADIAL | 72% | View |
| 860130875007 | Würth Elektronik | CAP ALUM 22UF 20% 100V RADIAL | 68% | View |
| ESH226M050AC3AA | KEMET | CAP ALUM 22UF 20% 50V RADIAL | 66% | View |
| 420BXW22MEFR10X25 | Rubycon | CAP ALUM 22UF 20% 420V RADIAL | 53% | View |
