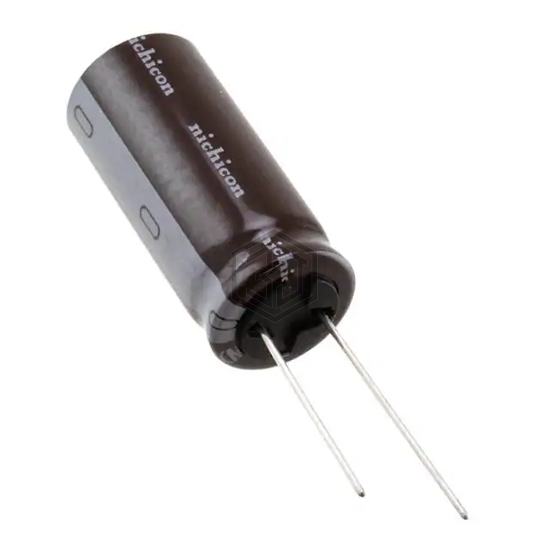

CAP ALUM 47UF 20% 315V RADIAL
UPS2F470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 5,300
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 304 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2F470MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504A9476M82 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 400V SNAP | 67% | View |
| EG1H470MNN6311U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 66% | View |
| 1T476M050HEBRR | Aillen | CAP ALUM 47UF 20% 50V RADIAL TH | 60% | View |
| UPW1V470MED1TA | Nichicon | CAP ALUM 47UF 20% 35V RADIAL | 59% | View |
| EEU-TA1J470S | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V RADIAL | 57% | View |
| 160BXW47MEFR10X16 | Rubycon | CAP ALUM 47UF 20% 160V RADIAL | 54% | View |
