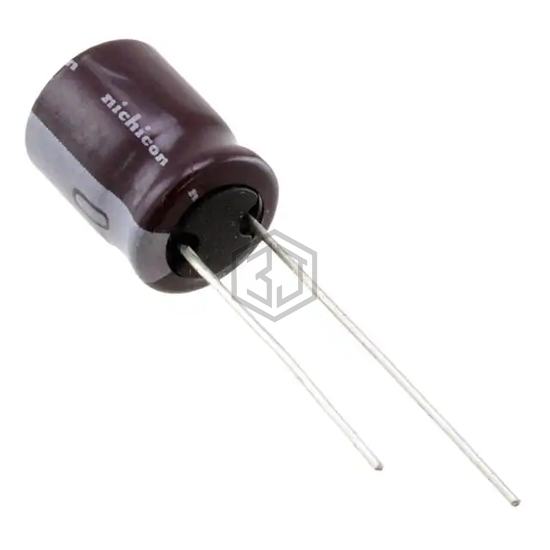

CAP ALUM 2.2UF 20% 315V RADIAL
UPS2F2R2MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 923
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 44.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2F2R2MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2E2R2MPD1TD | Nichicon | CAP ALUM 2.2UF 20% 250V RADIAL | 91% | View |
| 400PX2R2MEFC8X11.5 | Rubycon | CAP ALUM 2.2UF 20% 400V RADIAL | 87% | View |
| UVZ2E2R2MED1TD | Nichicon | CAP ALUM 2.2UF 20% 250V RADIAL | 84% | View |
| MAL215267228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 450V RADIAL | 66% | View |
| ESE225M100AC3AA | KEMET | CAP ALUM 2.2UF 20% 100V RADIAL | 65% | View |
| EEU-HD1H2R2 | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 63% | View |
Submit your RFQ for UPS2F2R2MPD1TD and get a quote within 24 hours.
