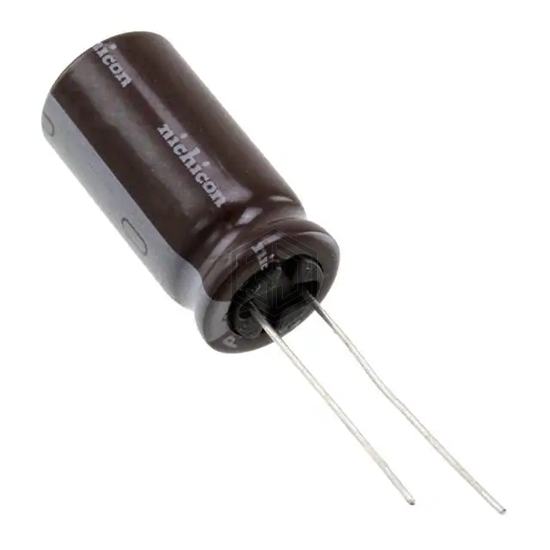

CAP ALUM 33UF 20% 250V RADIAL
UPS2E330MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,372
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 304 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPS2E330MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UAQ2G330MHD6TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 84% | View |
| B43041B9336M | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 400V RADIAL | 76% | View |
| UPJ2A330MPD6 | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 75% | View |
| 630D336M050DC2A | Vishay Sprague | CAP ALUM 33UF 20% 50V AXIAL | 56% | View |
| 30D336M063CB2A | Vishay Sprague | CAP ALUM 33UF 20% 63V AXIAL | 55% | View |
| 16ZL33MEFCT55X7 | Rubycon | CAP ALUM 33UF 20% 16V RADIAL | 51% | View |
Submit your RFQ for UPS2E330MHD1TO and get a quote within 24 hours.
