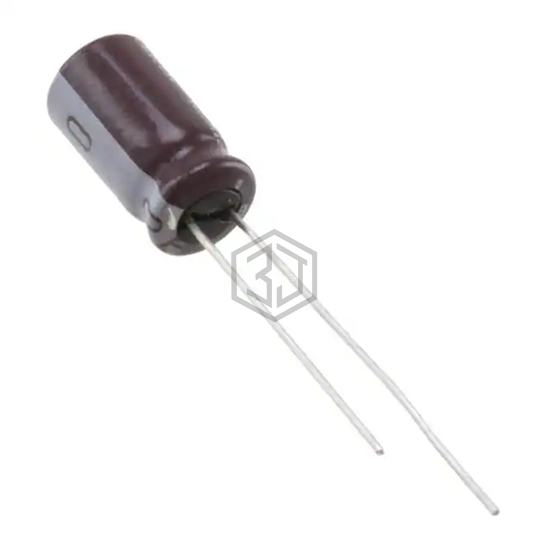

CAP ALUM 0.47UF 20% 200V RADIAL
UPS2DR47MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,047
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12 mA @ 120 Hz |
| Ripple Current @ High Frequency | 19.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UPS2DR47MED and get a quote within 24 hours.
